FileSync CLI

Overview​

The FileSync CLI is an Enterprise Add-On Module that enables:

  • Document / Attribute Importing through CSV files
  • Document synchronization between local file systems and FormKiQ
  • Document synchronization with OpenSearch
  • Automated file monitoring and sync

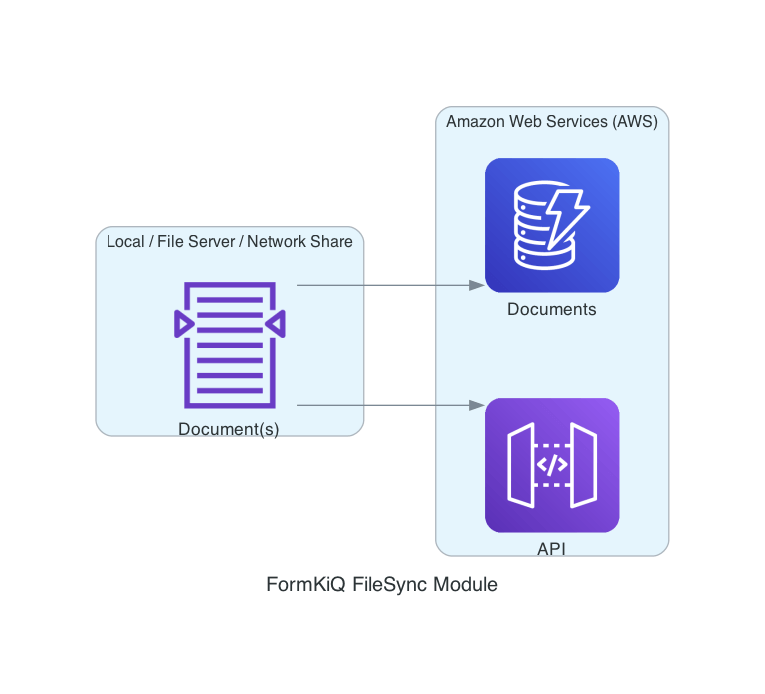

FormKiQ File Sync Module

Installation​

The FileSync CLI is available as part of your FormKiQ Essentials, Advanced or Enterprise installations.

The CLI is available for 3 different platforms, available from your custom FormKiQ S3 bucket.

PlatformLocation
Windowss3://YOUR-FORMKIQ-S3-BUCKET/cli/formkiq-filesync-cli-VERSION-windows-amd64.zip
Linuxs3://YOUR-FORMKIQ-S3-BUCKET/cli/formkiq-filesync-cli-VERSION-linux-amd64.zip
macOSs3://YOUR-FORMKIQ-S3-BUCKET/cli/formkiq-filesync-cli-VERSION-darwin-amd64.zip

Installation Steps​

aws s3 cp s3://YOUR-FORMKIQ-S3-BUCKET/cli/formkiq-filesync-cli-VERSION-windows-amd64.zip .

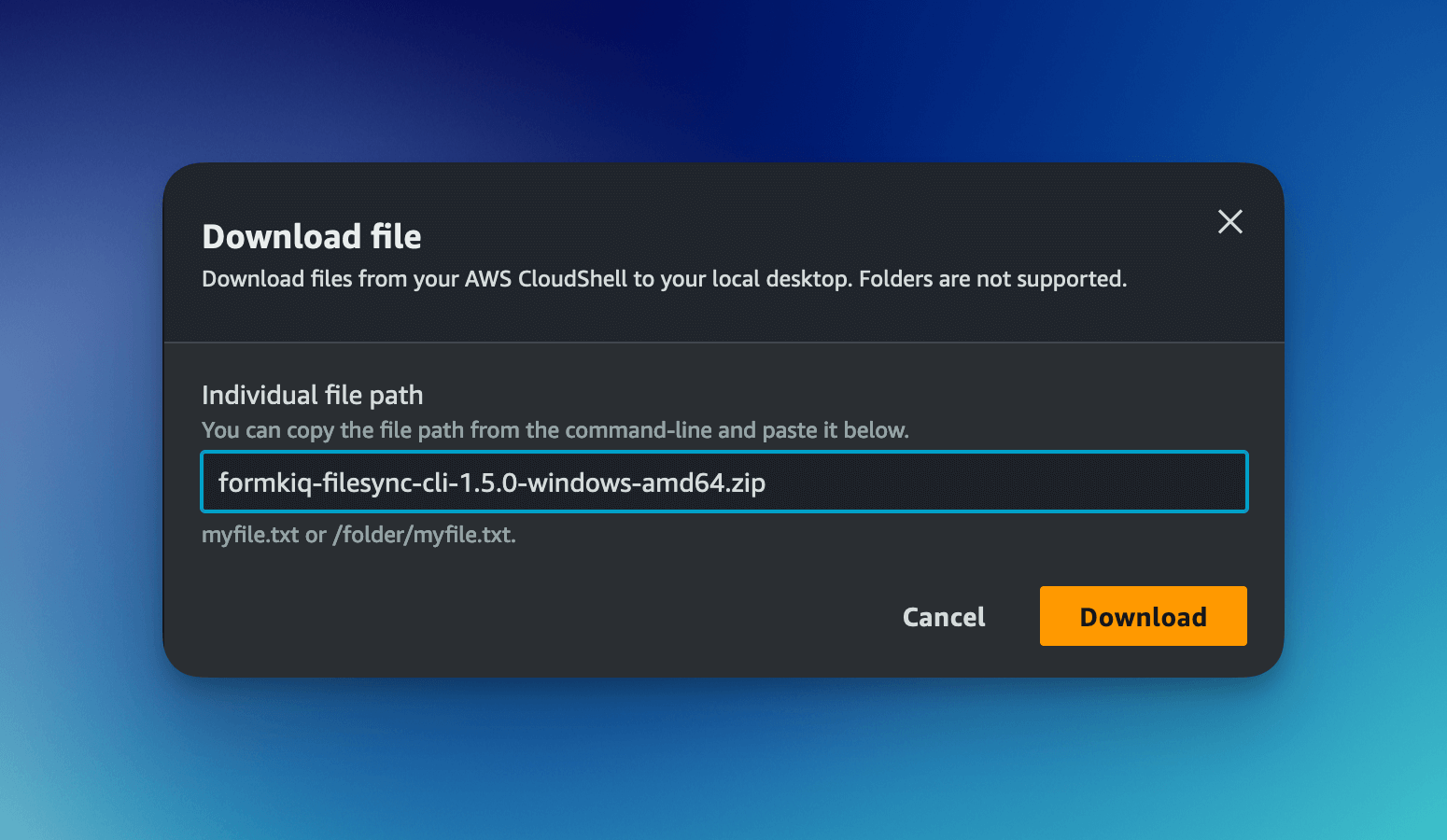

  • Download file through CloudShell Actions menu

AWS CloudShell FormKiQ CLI Download

Static Credentials (deprecated)​

CLI comes with a CloudFormation script that can generate IAM Static Credentials.

  • Access your AWS CloudFormation Console
  • Locate your FormKiQ installation
  • Note the following from Stack Outputs:
    • IamApiUrl
    • DocumentsTableName

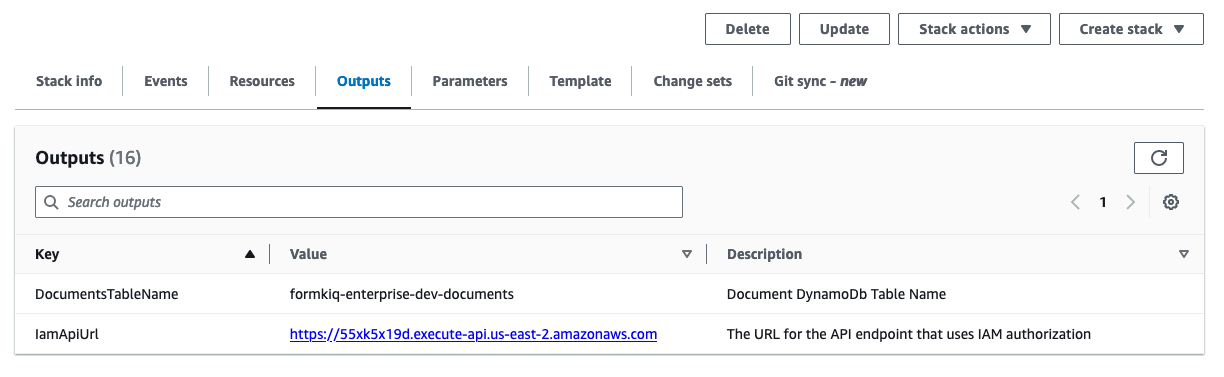

FormKiQ CloudFormation Outputs

  • Create a new CloudFormation stack for FileSync CLI
  • Configure stack parameters:
    • Stack Name
    • Comma-delimited list of FormKiQ DocumentsTable ARN(s)

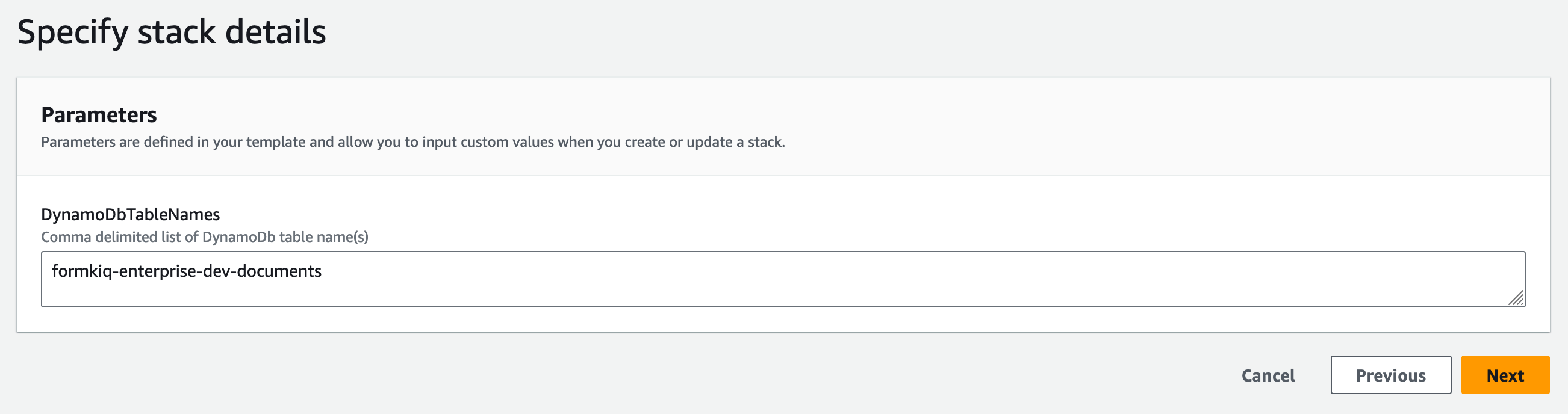

FileSync CLI Stack Details

  • Note the AccessKey and SecretKey from stack Outputs

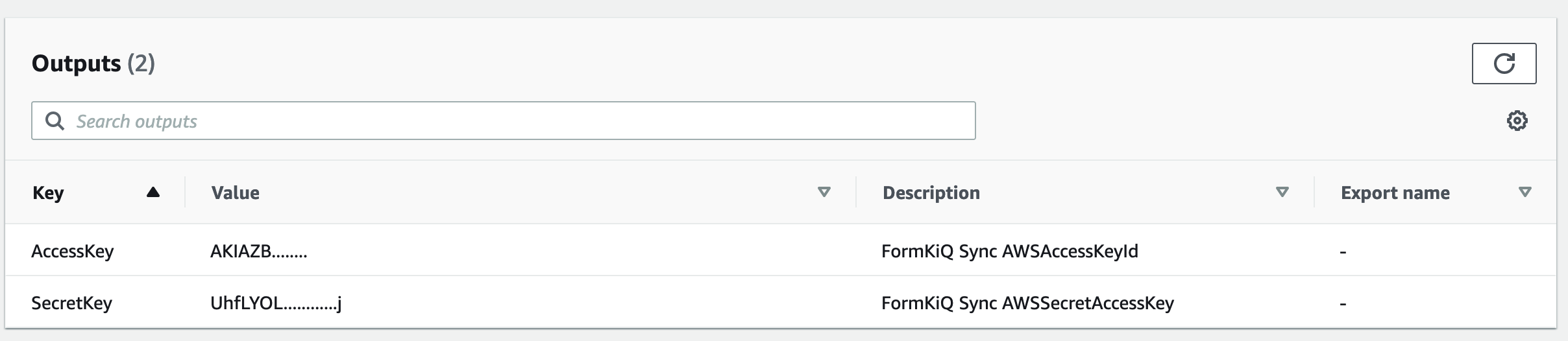

CloudFormation FileSync CLI Outputs

note

FileSync CLI supports multiple FormKiQ installations

Usage​

usage: fk
    --configure          configure AWS credentials
    --delete-documents   Delete documents
    --delete-site        Delete Site
    --import            Import csv file
    --list              list document ids
    --show              show sync profiles
    --sync              sync files with FormKiQ
    --sync-dynamodb     sync documents between dynamodb tables
    --sync-opensearch   sync documents with Opensearch
    --watch             watch directories for file changes

The FileSync CLI requires to be run with the following IAM permissions:

  • execute-api:Invoke
  • kms:Encrypt
  • kms:Decrypt
  • kms:GenerateDataKey
  • cloudformation:ListStacks
  • cloudformation:DescribeStacks

The following IAM permissions to the FormKiQ DynamoDb tables

  • dynamodb:BatchGetItem
  • dynamodb:DeleteItem
  • dynamodb:GetItem
  • dynamodb:Query
  • dynamodb:Scan
  • dynamodb:UpdateItem
  • dynamodb:BatchWriteItem

--configure​

Below the CLI can be used, it needs to be connected to your FormKiQ installation.

CloudShell​

When running the CLI using CloudShell you can use the command

fk --configure --app-environment FORMKIQ_APP_ENVIRONMENT \
               --region AWS_REGION

AWS CLI​

If your environment is configured using the AWS CLI

fk --configure --aws-profile AWS_PROFILE \
               --region AWS_REGION \
               --app-environment FORMKIQ_APP_ENVIRONMENT

Static Credentials​

Specify FormKiQ App Environment:

fk --configure --access-key ACCESS_KEY \
               --secret-key ACCESS_SECRET \
               --region AWS_REGION \
               --app-environment FORMKIQ_APP_ENVIRONMENT

CloudFormation Configuration (deprecated)​

Required information:

  • Access Key and Secret Key from FileSync CLI stack
  • DocumentsStageS3Bucket from FormKiQ stack
  • AWS Region of installation

Basic configuration:

fk --configure --access-key ACCESS_KEY \
               --secret-key ACCESS_SECRET \
               --region AWS_REGION \
               --iam-api-url IAM_API_URL \
               --documents-dynamodb-tablename DOCUMENTS_TABLE_NAME

With profile:

fk --configure --access-key ACCESS_KEY \
               --secret-key ACCESS_SECRET \
               --region AWS_REGION \
               --iam-api-url IAM_API_URL \
               --documents-dynamodb-tablename DOCUMENTS_TABLE_NAME \
               --profile dev

--show​

The --show command will list the CLI configurations.

fk --show

--import​

The CLI includes a built-in CSV importer for quickly bulk-loading:

  • Attributes
  • Documents
  • Document Content
  • Document Attributes

Import Attributes​

Bulk define or update the metadata fields (attributes) that can later be applied to your documents.

  • AttributeKey: the unique key for the attribute

  • DataType: data type of the attribute (e.g. STRING, NUMBER, BOOLEAN, KEY_ONLY)

  • Type: classification of the attribute (STANDARD, GOVERNANCE, OPA)

CSV Format​

AttributeKey,DataType,Type
status,STRING,STANDARD
priority,NUMBER,STANDARD
...

Command​

fk --import-csv --attributes <attributes-file.csv>

Import Documents​

Bulk register documents (by UUID, path, content type, and optional deep-link) into FormKiQ.

  • DocumentId: unique UUID identifier for the document
note

For DocumentId, you can create any UUID v4 for use in this column (UUID v4 is supported by all major programming languages). That ID will be imported into FormKiQ as FormKiQ's documentId property; this is how you can prevent duplicate uploads when re-processing the CSV)

You can also generate a list of UUIDs in advance using a tool such as https://www.uuidgenerator.net/

  • Path: virtual path within FormKiQ (must start with /)

  • ContentType: MIME type of the document

  • DeepLink: (optional) URL to access the document directly

CSV Format​

DocumentId,Path,ContentType,DeepLink
550e8400-e29b-41d4-a716-446655440000,/invoices/2025/05/001.pdf,application/pdf,
123e4567-e89b-12d3-a456-426614174000,/reports/2025/Q1.xlsx,application/vnd.openxmlformats-officedocument.spreadsheetml.sheet,
...

Command​

fk --import-csv --documents <documents-file.csv>

Import Document Contents​

Bulk upload or link the actual binary content of your documents into FormKiQ from your local filesystem or an S3 bucket.

  • DocumentId: must match an existing document’s UUID

  • Location: local filesystem path or S3 URI to the document file

CSV Format​

DocumentId,Location
550e8400-e29b-41d4-a716-446655440000,/path/to/file.pdf
123e4567-e89b-12d3-a456-426614174000,s3://my-bucket/documents/report.xlsx
...

Command​

fk --import-csv --document-contents <document-contents-file.csv>

Import Document Attributes​

Bulk assign attribute values to existing documents.

  • DocumentId: must match an existing document’s UUID

  • AttributeKey: must match a defined attribute

  • StringValue / NumberValue / BooleanValue: supply exactly one value type per row; leave the others blank

CSV Format​

DocumentId,AttributeKey,StringValue,NumberValue,BooleanValue
550e8400-e29b-41d4-a716-446655440000,status,approved,,
550e8400-e29b-41d4-a716-446655440000,priority,,5,
123e4567-e89b-12d3-a456-426614174000,reviewed,,,
123e4567-e89b-12d3-a456-426614174000,isPublished,,,true
...

Command​

fk --import-csv --document-attributes <doc-attrs-file.csv>

--sync​

Basic Sync​

fk --sync -d /documents --verbose

S3 Sync​

fk --sync -d s3://myBucket/documents --verbose

Time-based Sync​

# Last 24 hours
fk --sync -d /documents --verbose --mtime 0

# Older than 7 days
fk --sync -d /documents --verbose --mtime 7

# Last 30 days
fk --sync -d /documents --verbose --mtime -30

Actions Sync​

fk --sync --actions '[
  {
    "type": "OCR",
    "parameters": {
      "ocrParseTypes": "TABLES"
    }
  },
  {
    "type": "FULLTEXT"
  },
  {
    "type": "WEBHOOK",
    "parameters": {
      "url": "https://pipedream.com/12345"
    }
  }
]' -d /documents --verbose

Watch Mode​

fk --watch -d /documents --verbose

Pre-Hook Integration​

The --pre-hook parameter enables document-specific customization during sync.

Request Format:

{
    "path": "<filename>",
    "config": {
        "directory": "<directory>",
        "actions": "<actions>",
        "siteId": "<siteId>",
        "stagebucket": "<stagingbucket>"
    }
}

Response Example:

{
  "tags": [
    {
      "key": "category",
      "value": "document"
    },
    {
      "key": "user",
      "values": ["1", "2"]
    }
  ],
  "metadata": [
    {
      "key": "property1",
      "value": "value1"
    }
  ]
}

--sync-dynamodb​

fk --sync-dynamodb \
    --source formkiq-enterprise-dev1-documents \
    --destination formkiq-enterprise-dev2-documents

--sync-opensearch​

# Sync specific documents
fk --sync-opensearch --document-ids 2def5ec0-0d6e-4912-916d-cdfca99575c9 -v

# Sync all documents
fk --sync-opensearch --document-ids all -v

# Sync with content
fk --sync-opensearch --document-ids all --content -v

Document Management​

List Documents​

fk --list --limit 100

Delete Documents​

# Generate list
fk --list > documents.txt

# Delete documents
fk --delete-documents --file documents.txt
