Amazon Managed Login

This tutorial show you how to connect Amazon Cognito to a SAML provider, IE: Microsoft Entra, Okta, etc.

We will be:

  • Adding an Identify Provider into Amazon Cognito

  • Configuring a Cognito Managed login page

What you’ll need​

  • A SAML provider (Cognito Identity Provider) already configured for your Amazon Cognito User Pool.

See tutorials:

Pre-requisite​

You will need these specific configuration values:

  • FormKiQ Console URL

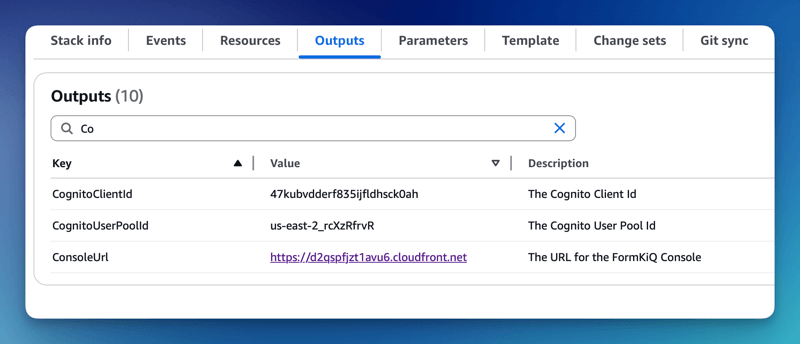

The CognitoUserPoolId and Console URL can be found in the Outputs tab of your FormKiQ CloudFormation installation.

Cognito User Pool Id and Console Url

Cognito Managed login​

Amazon Cognito Managed login provides a URL connection between Amazon Cognito and SAML provider.

To configure Cognito Managed login, select the Managed login link under the Branding tab on the Cognito console.

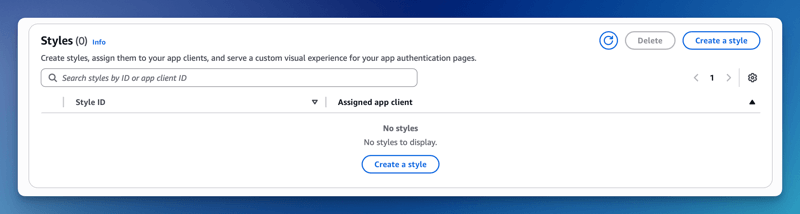

Scroll down to the Styles section and click Create a style.

Cognito App Integration

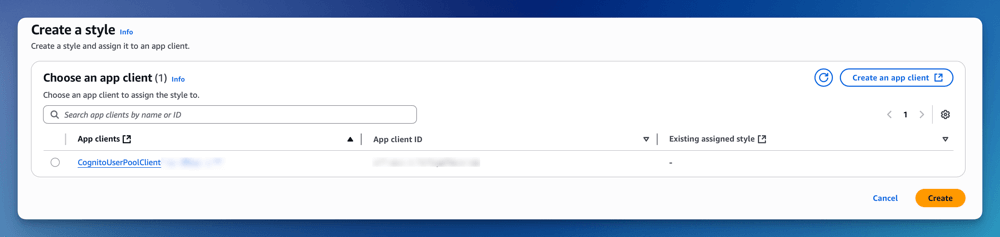

Select the listed App Client and click Create or create a NEW custom app client.

Select Cognito App Client

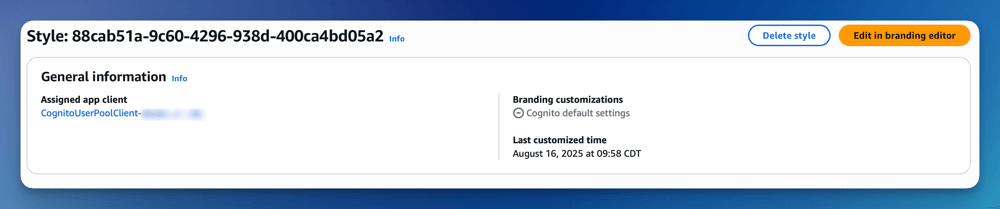

The Managed login is created. Next, you will need to connect the Managed login to your App Client. Under Assigned app client, click the link to take you to your app client configuration.

Cognito Managed Login Link

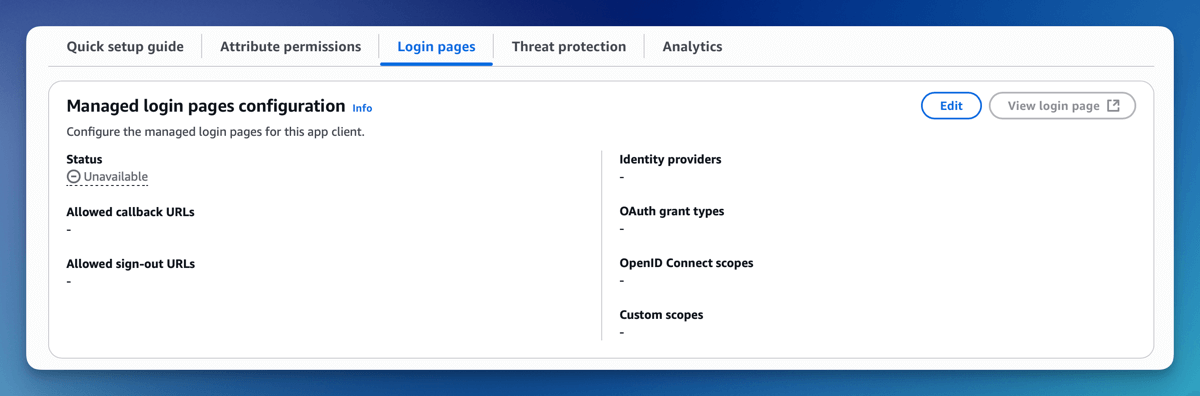

The next step is to configure your App client to your Identity provider. On the Login pages tab, click the Edit button.

Cognito App Client Login Page

On the Edit managed login pages configuration page, set the following configuration:

Allowed callback URLs

  • Set the FormKiQ Console Url as an allowed callback. This will allow the user to be redirected to the FormKiQ console after a successful login.

Identity providers

  • Choose Azure or Okta or the identify provider you created

OAuth 2.0 grant types

  • Set the OAuth grant type to Authorization code grant

OpenID Connect scopes

  • Select OpenID, Email, Profile

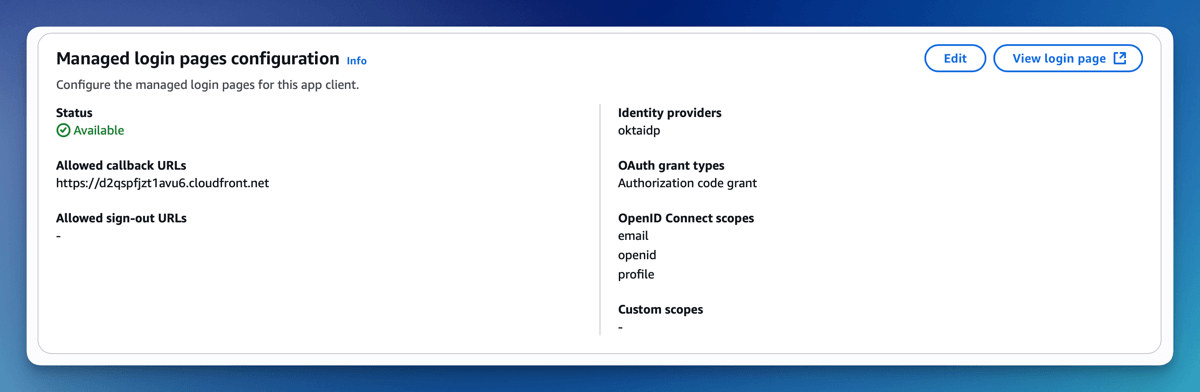

Once you save the configuration, you'll see the View login page button is now available. This is the link to login to FormKiQ. Make note of the url and you will need to add it to the FormKiQ CloudFormation stack.

Cognito View Login page

FormKiQ Stack Configuration​

Once you have the Cognito login page Url, you will need to update your FormKiQ installation to complete the setup.

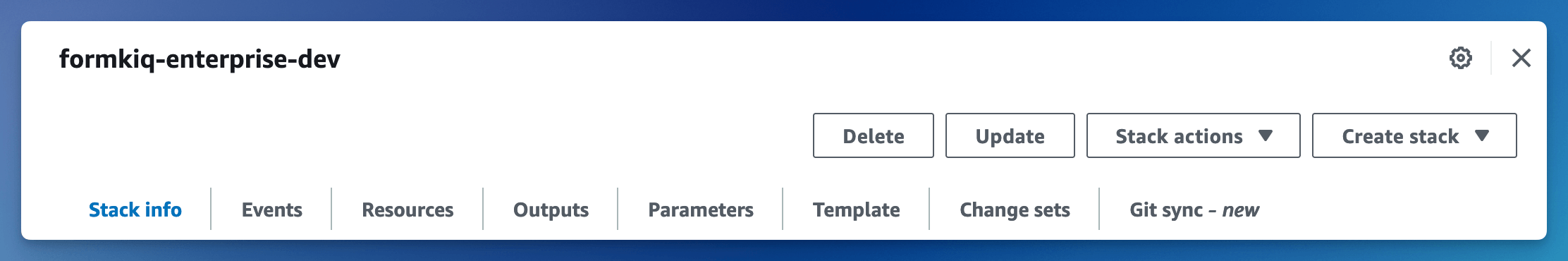

Visit the CloudFormation console and select to Update your FormKiQ installation stack.

CloudFormation Update Stack

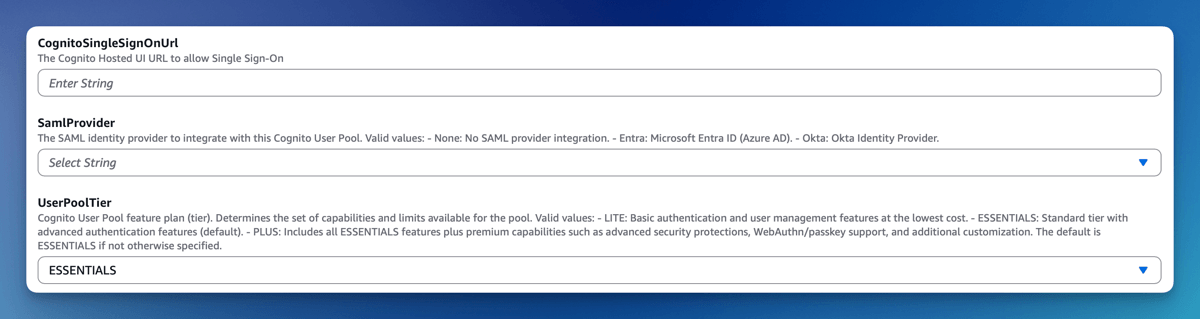

When updating the CloudFormation, you will update the following parameters:

Cognito Single Sign On Url

  • Set the value to be the Cognito login page Url

SAML Provider

  • Select your SAML Provider, ie: Okta / Entra

UserPool Tier

  • Cognito requires you to use either ESSENTIALS or PLUS tier. Select ESSENTIALS unless you know you need PLUS.

CloudFormation Cognito Single Sign On Url

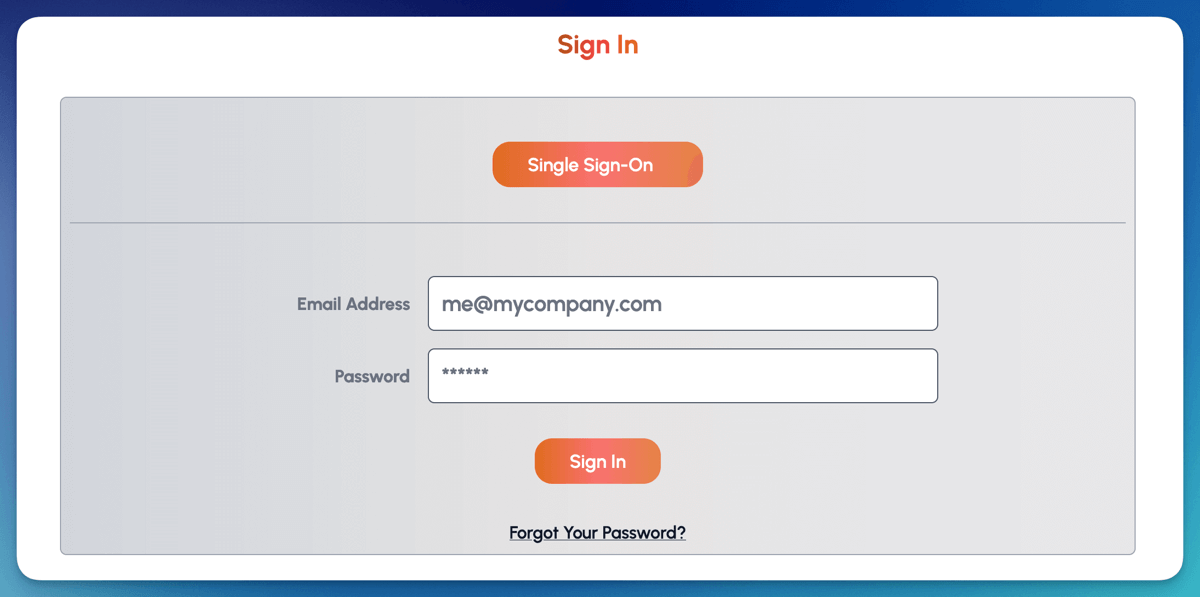

Continue through the stack update process. After it completes, you will see the Single Sign-On login button on the FormKiQ console login page, this link will allow you to login through your SSO provider.

Console Single Cognito Single Sign On

Summary​

And there you have it! We have shown how easy it is to connect Cognito Managed login to your SAML provider.

This is just the tip of the iceberg when it comes to working with the FormKiQ APIs.

If you have any questions, reach out to us on our https://github.com/formkiq/formkiq-core or https://formkiq.com.
